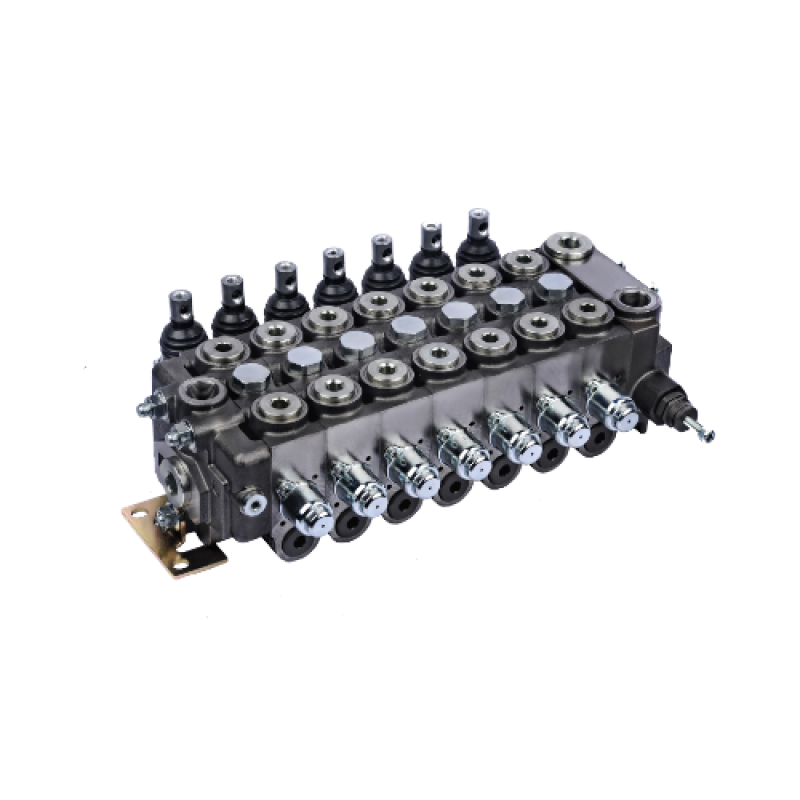

KV19 G3/4" Hydraulic Sectional Valve (Standart) UNF 1 1/16-12 (SAE 12)

PLEASE ASK FOR PRICE!

PRODUCT FEATURES
KV19 is a robust control valve for operating pressure 315bar and flows up to 130l/min. The valve is designed for high performance for open and closed center hydraulic systems.

ACCESSORIES
Valve is equipped with an adjustable main relief valve
Available in parallel (in standard)
Load hold check valves in each section
Auxiliary valves
LS option
Wide range of spool options
Interchangeable Ø19mm Spools
Carry-over and closed center option

CONTROLS
Manual, Pneumatic, Electro-Pneumatic, Hydraulic, Electro-Hydraulic, Mechanical Joystick, Remote Cable Control

KV19.pdf DataSheet
