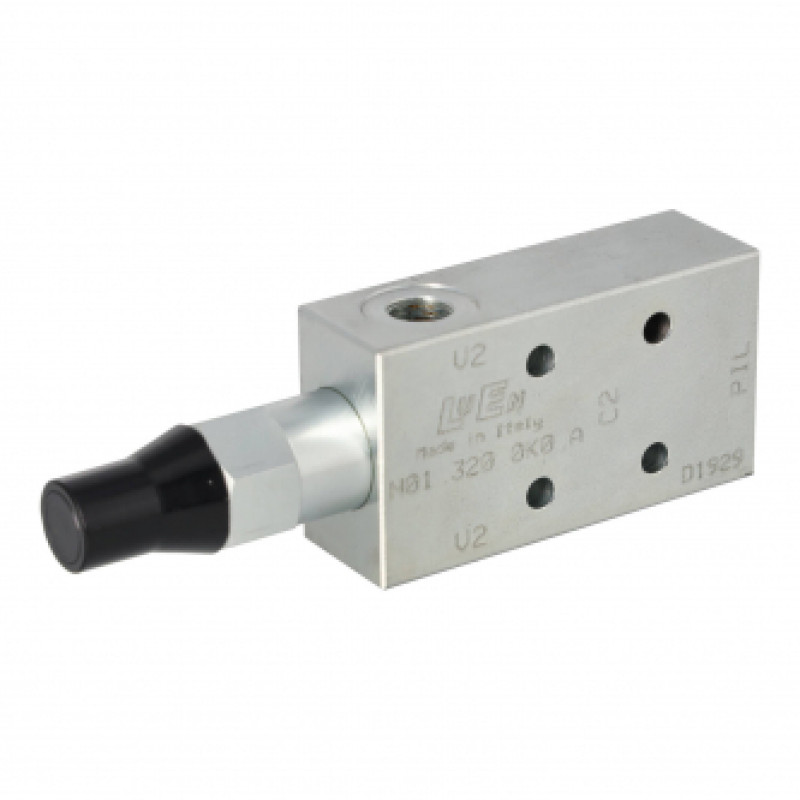

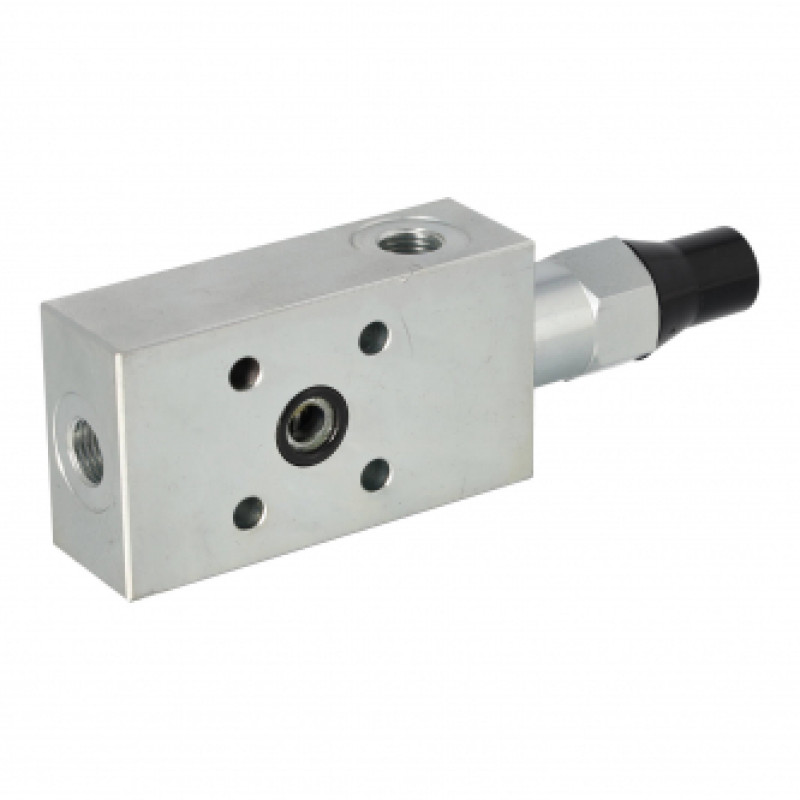

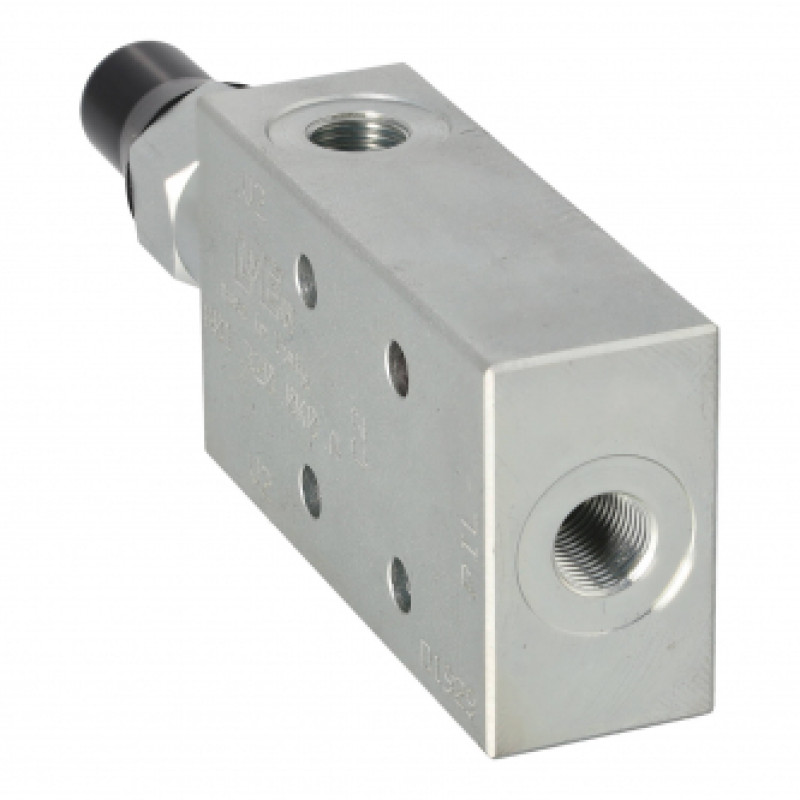

N01.320.0K0.A 1/4" Luen Single check valve OWC-SE-14-FC1-B04

N01.320.0K0.A 1/4" Luen Single check valve OWC-SE-14-FC1-B04

max. pressure - 450 bar

max. flow - 20L/min

Setting range - 60-350 bars

pilot rate - 4.25:1

Connection type - 1/4" BSPP

oil temperature - -30°C + 80°C

Ambient temperature - -30°C + 50°C

Description - Luen hydraulic lock 1/4" OWC-SE-14-FC1-B04 Peak pressure: 450 bar Preset pressure: 250 bar Ports: V1-V2 - 1/4" BSPP C1-C2 - 1/4" BSPP Nominal size: DN 6 Body dimensions: 90x50x29mm

Comparison code - 001.320.0K0
