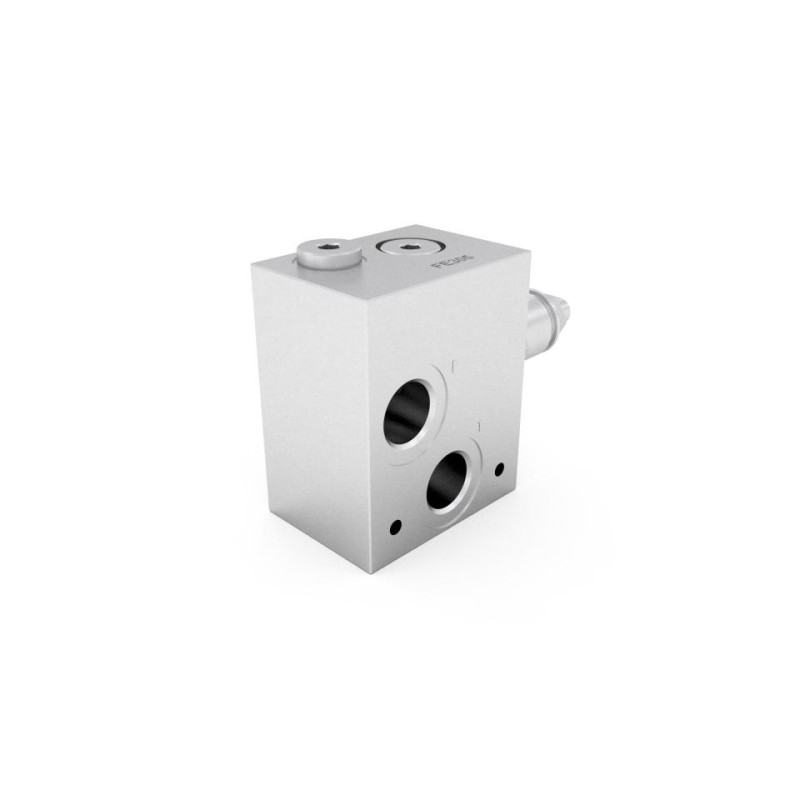

FE305 Stackable valves | Inlet plates

PLEASE ASK FOR PRICE!

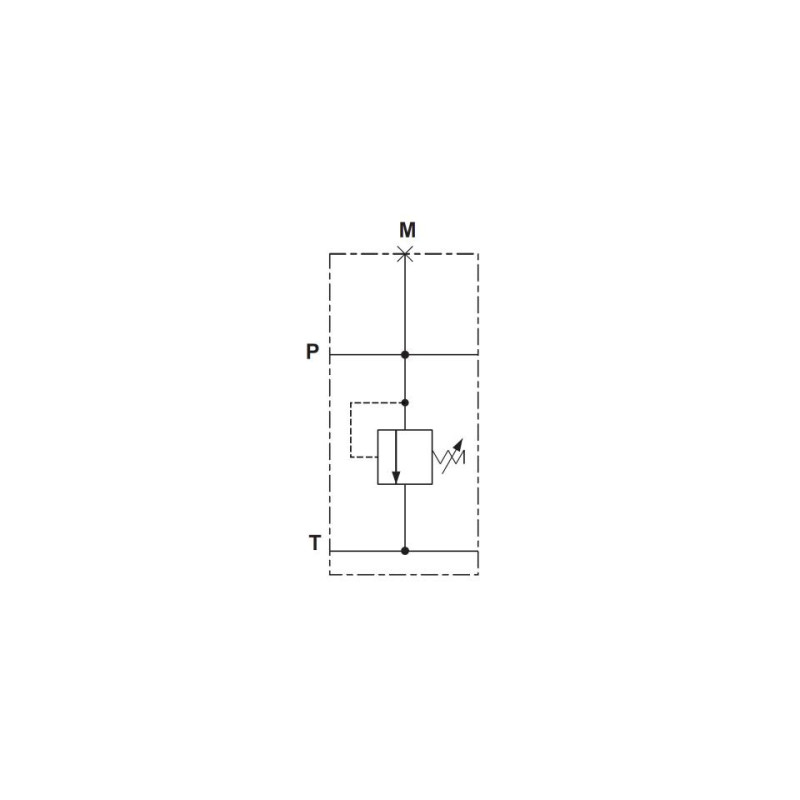

Stackable non-compensated pressure relief inlet plate

Pression max	310 bars
Max flow rate	80 l/min
Spring calibration 1 max	50 bars
Spring calibration 2 max	140 bars
Spring calibration 3 max	350 bars
Hydraulic fluids	mineral oils DIN 51524
Fluid viscosity	10 ÷ 500 mm2/s
Fluid temperature	-25°C ÷ 75°C
Room temperature	-25°C ÷ 60°C
Maximum contamination level	class 10 according to NAS 1638 with filter ß25≥75
Weight	1,85 Kg
