FE10PS Stackable Valves | Entrance Plates

PLEASE ASK FOR PRICE!

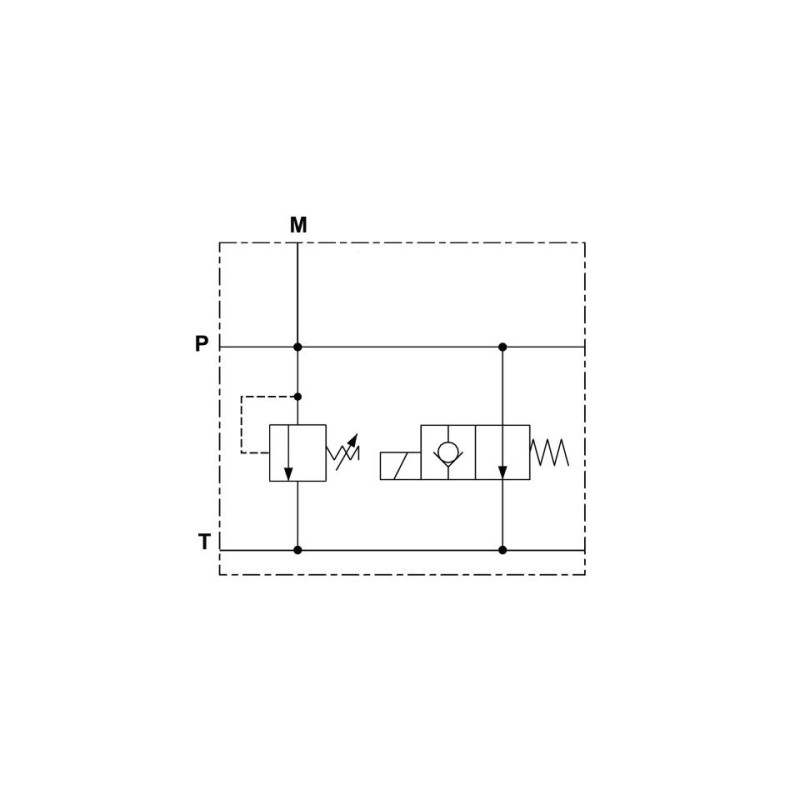

Inlet plate with pressure relief and non-compensated side port bypass stackable

Max Pressure	250 bar
Max Flow Rate	40 l/min
Spring setting 1 max	50 bar
Spring setting 2 max	150 bar
Spring setting 3 max	320 bar
Hydraulic fluids	mineral oils DIN 51524
Fluid viscosity	10 ÷ 500 mm2/s
Fluid Temperature	-25°C ÷ 75°C
Room temperature	-25°C ÷ 60°C
Maximum contamination level	class 10 according to NAS 1638 with ß25≥75 filter
Weight	1.1 kg
Components	CMP10 \| CRP04
