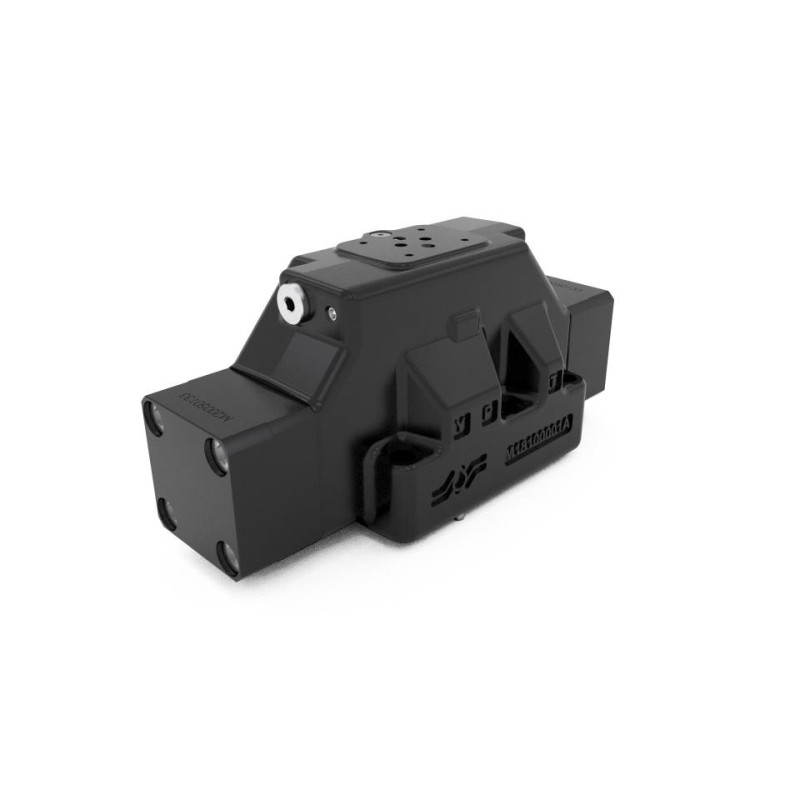

ADH8 CETOP 8 hydraulically controlled all-or-nothing distributor Valve
- Brand: Dana Brevini Aron
- Product Code: ADH8
- Availability: In Stock
0.00€
- Ex Tax: 0.00€
PLEASE ASK FOR PRICE!
Product or component category: Distribution valves | Hydraulic distributors
CETOP 8 hydraulically controlled all-or-nothing distributor
| Pression max (Orifices P/A/B) | 320 bars |
| Pression max (Orifices T int.) | 160 bars |
| Pression max (Orifices T ext.) | 250 bars |
| Minimum pilot pressure | 5 bars |
| Max pilot pressure | 210 bars |
| Max flow rate | 450 l/min ÷ 600 l/min |
| Oil volume (4/3 piloting) | 11.1 cm3 |
| Oil volume (4/2 piloting) | 22.12 cm3 |
| Hydraulic fluids | mineral oils according to DIN 51524 |
| Fluid viscosity | 2.8 ÷ 380 mm2/s |
| Fluid temperature | -20°C ÷ 70°C |
| Room temperature | -20°C ÷ 50°C |
| Maximum contamination level | class 10 according to NAS 1638 with filter ß25≥75 |
| Weight | 13,1 Kg |
