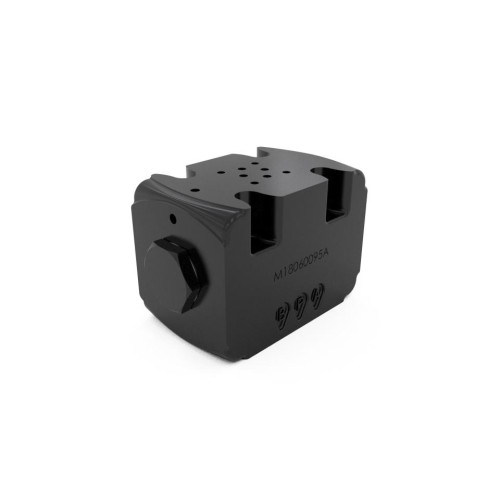

ADPH5 CETOP 5 hydraulically controlled all-or-nothing distributor Valve

PLEASE ASK FOR PRICE!

Product or component category: Distribution valves | Hydraulic distributors

CETOP 5 hydraulically controlled all-or-nothing distributor

Max pressure (Ports P/A/B)	250 bars
Max pressure (T ports)	70 bars
Minimum pilot pressure	10 bars
Max pilot pressure	250 bars
Max flow rate	120 l/min
Oil volume (Piloting)	1 cm3
Hydraulic fluids	mineral oils according to DIN 51524
Fluid viscosity	10 ÷ 500 mm2/s
Fluid temperature	-20°C ÷ 75°C
Maximum contamination level	class 10 according to NAS 1638 with filter ß25≥75
Weight	3.4 kg
