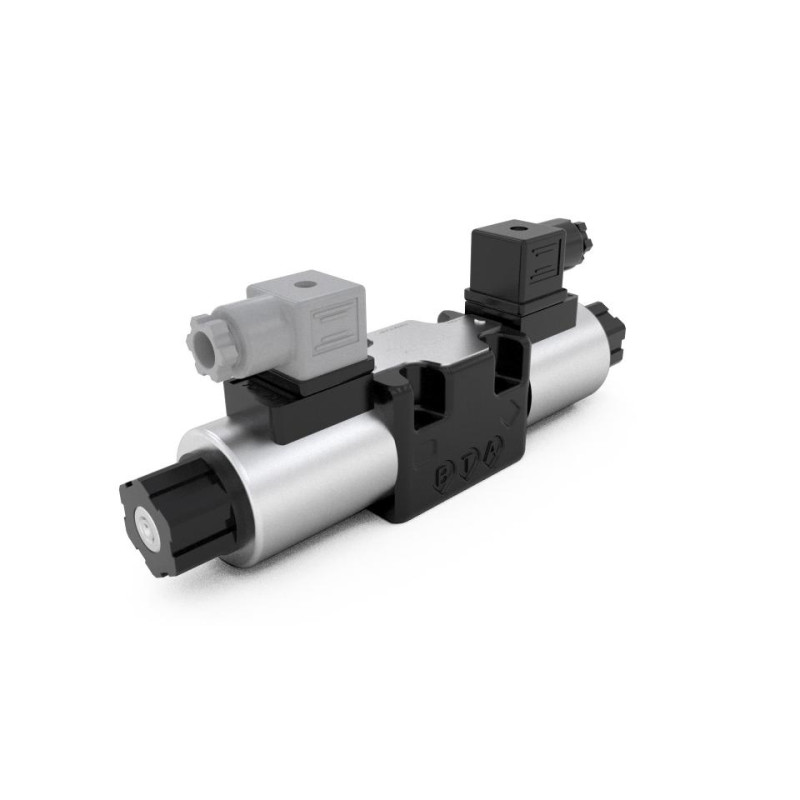

ADB3E CETOP 3 electrically controlled all-or-nothing distributor Valve
- Brand: Dana Brevini Aron
- Product Code: ADB3E
- Availability: In Stock
0.00€
- Ex Tax: 0.00€
PLEASE ASK FOR PRICE!
Product or component category: Distribution valves | Hydraulic distributors
CETOP 3 electrically controlled all-or-nothing distributor
| Pression max (Orifices P/A/B) | 350 bars |
| Pression max bobine DC (Orifice T) | 160 bars |
| Max AC coil pressure (T port) | 100 bars |
| Max flow rate | 60 l/min |
| Max. excitation frequency | 3 Hz |
| Excitation | 100% ED |
| Fluid viscosity | 10 ÷ 500 mm2/s |
| Fluid temperature | -25°C ÷ 75°C |
| Room temperature | -25°C ÷ 60°C |
| Maximum contamination level | class 10 according to NAS 1638 with filter ß25≥75 |
| Weight (one spool) | 1,31 ÷ 1,46 Kg |
| Weight (two spools) | 1,72 ÷ 2,02 Kg |
Tags: ADB3E CETOP 3 electrically controlled all-or-nothing distributor Valve
