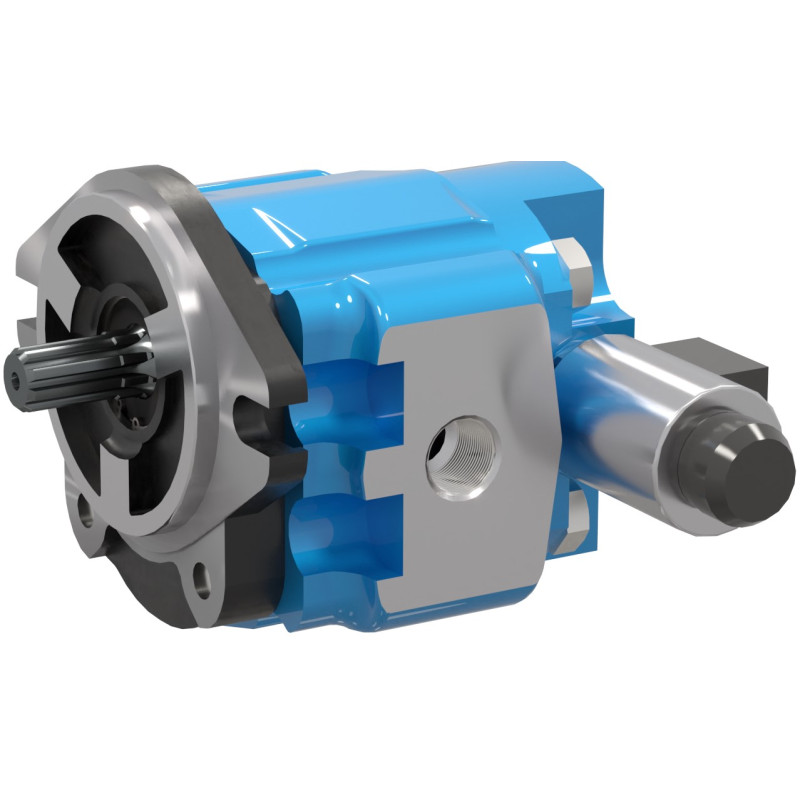

HERCULES Gr. 2 gear motor with high strength cast iron body for heavy duty applications and high temperature environment
- Brand: Dana Brevini Aron
- Product Code: HERCULES Gr. 2
- Availability: In Stock
0.00€
- Ex Tax: 0.00€
PLEASE ASK FOR PRICE!
| Displacement range [cm³/rev] |
Max flow [l/min] |
Max working pressure [bar] |
Max speed [rpm] |
|---|---|---|---|
| 4,1 - 30 | 70 | 270 | 4.000 |
Features
- Fixed displacement motor
- 3 pieces construction
- Gr2. cast iron body for heavy duty
- Integrated electro-proportional and on-off valves
- Embedded additional bearings for external loads
- Particulary suitable for fan drive applications
OT300-Gear-Motors-Series DataSheet.PDF
OT200-Gear-Motors-Series DataSheet.PDF
OT100-Gear-Motors-Series DataSheet.PDF
Tech Data – HERCULES Gr. 2
| Size | Displacement [cm³/rev] |
Working pressure [bar] |
Peak pressure [bar] |
Max working speed [rpm] |
Min working speed [rpm] |
Flow [l/min] |
Torque [Nm] |
|---|---|---|---|---|---|---|---|
| 04 | 4,1 | 270 | 320 | 4.000 | 500 | 16,4 | 17,6 |
| 06 | 6,2 | 270 | 320 | 4.000 | 500 | 24,8 | 26,7 |
| 08 | 8,2 | 270 | 320 | 3.500 | 500 | 28,7 | 35,3 |
| 11 | 11,2 | 260 | 310 | 3.500 | 500 | 39,2 | 46,4 |
| 14 | 14 | 260 | 310 | 3.500 | 500 | 49,0 | 58,0 |
| 16 | 16 | 250 | 300 | 3.000 | 500 | 48,0 | 63,7 |
| 20 | 20 | 250 | 300 | 3.000 | 500 | 60,0 | 79,6 |
| 22 | 22,5 | 250 | 300 | 2.500 | 500 | 56,3 | 89,6 |
| 25 | 25,1 | 230 | 280 | 2.500 | 500 | 62,8 | 91,9 |
| 28 | 28 | 200 | 250 | 2.500 | 500 | 70,0 | 89,2 |
| 30 | 30 | 190 | 240 | 2.000 | 500 | 60,0 | 90,7 |
