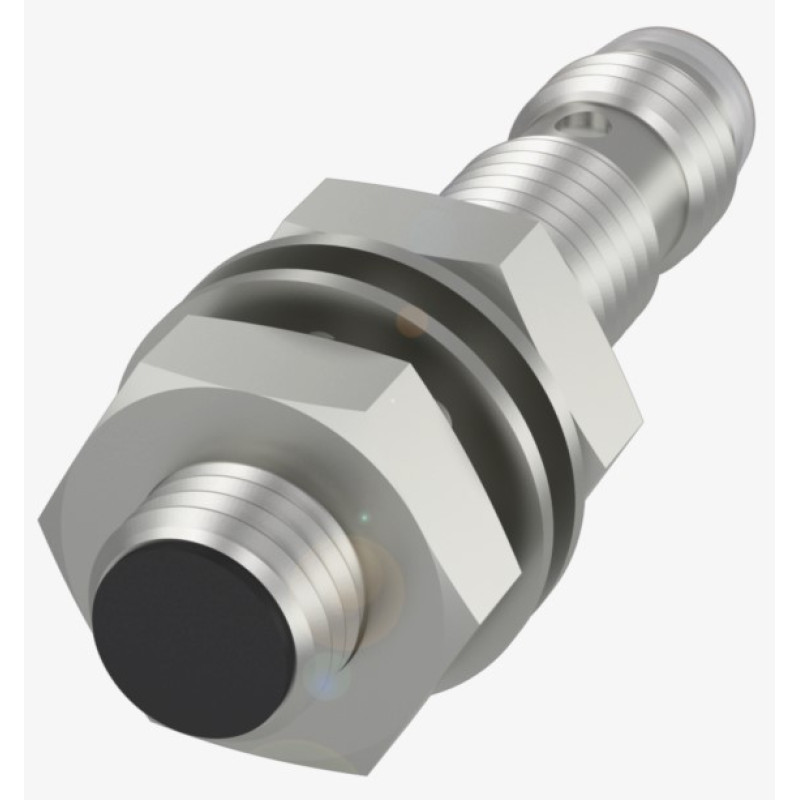

BES00CJ BES M08EE-PSC15B-S49G-003 Inductive proximity switches and proximity sensor

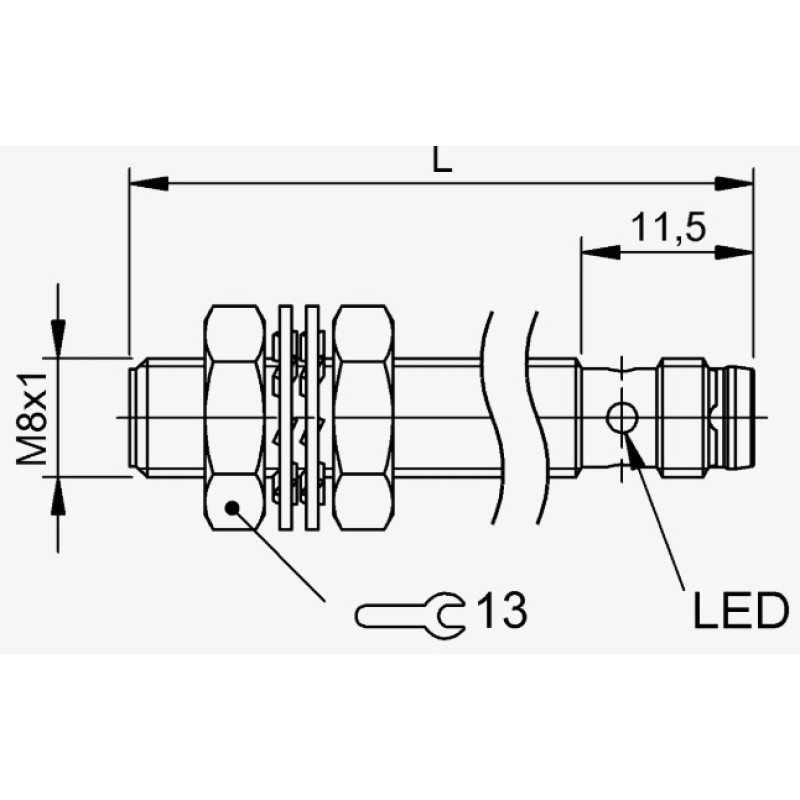

Dimension

Ø 8 x 40 mm

Style Housing

M8x1

Installation

for flush mounting

Range

1.5 mm

Switching output

PNP normally open (NO)

Switching frequency

5000 Hz

Housing material

Stainless steel

Material sensing surface

PBT

Connection

Connector, M8x1-Male, 3-pin

Operating voltage Ub

10...30 VDC

Ambient temperature

-40...85 °C

IP rating

IP68

Approval/Conformity

cULus
CE
WEEE

70.80€
