BES02J9 BES 516-326-S4-CW Inductive proximity switches and proximity sensor

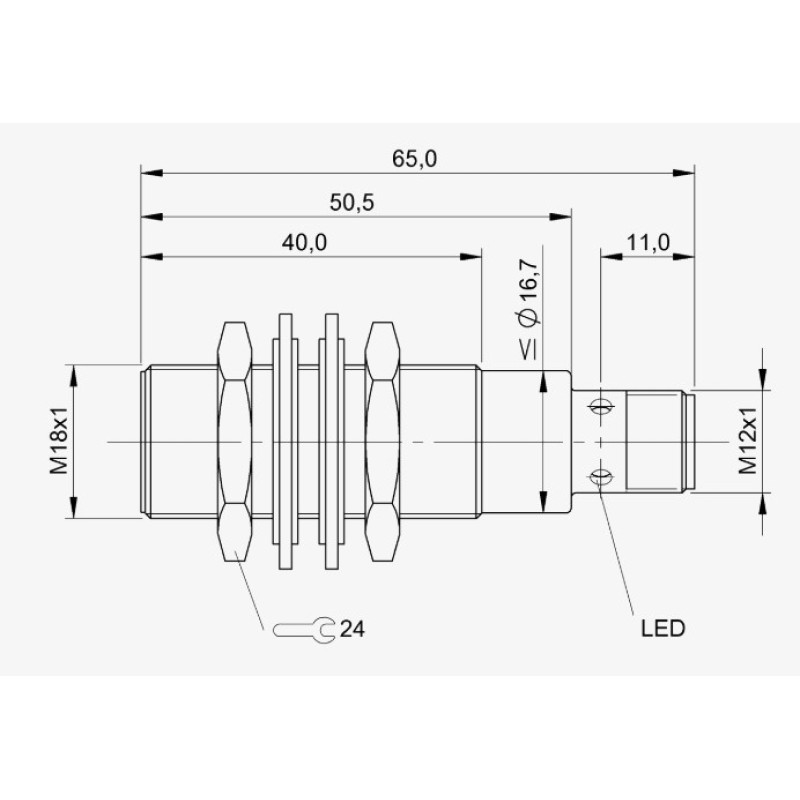

Dimension

Ø 18 x 65 mm

Style Housing

M18x1

Installation

for flush mounting

Range

5 mm

Switching output

PNP normally open (NO)

Switching frequency

500 Hz

Housing material

Brass, PTFE coated

Material sensing surface

PTFE

Connection

Connector, M12x1-Male, 4-pin

Operating voltage Ub

10...30 VDC

Ambient temperature

-25...70 °C

IP rating

IP67

Approval/Conformity

cULus
CE
UKCA
WEEE

163.20€
