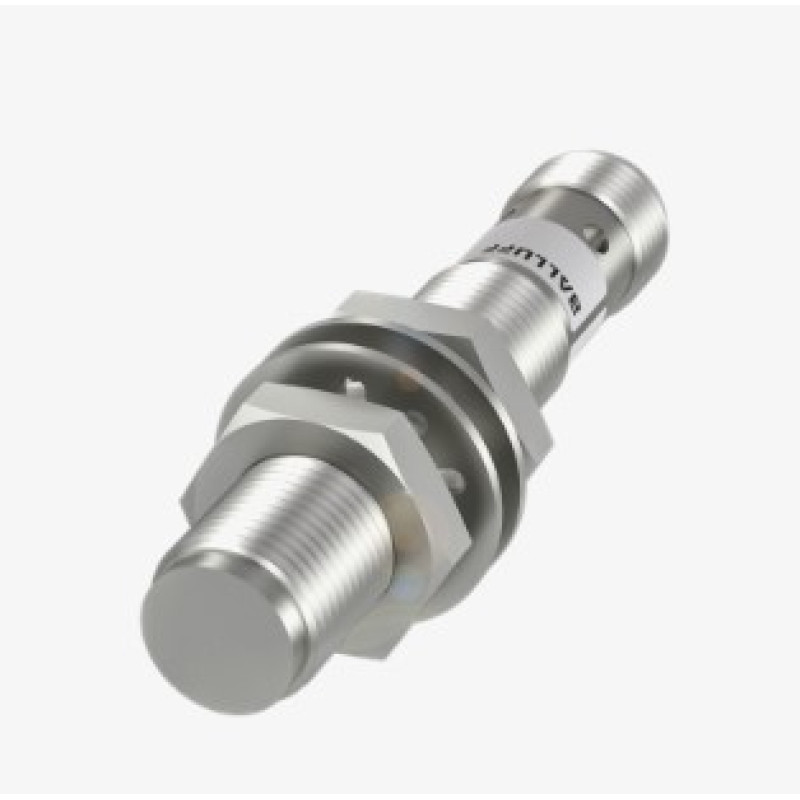

BES02Z3 BES M12EG1-PSC20S-S04G-S Inductive proximity switches and proximity sensor

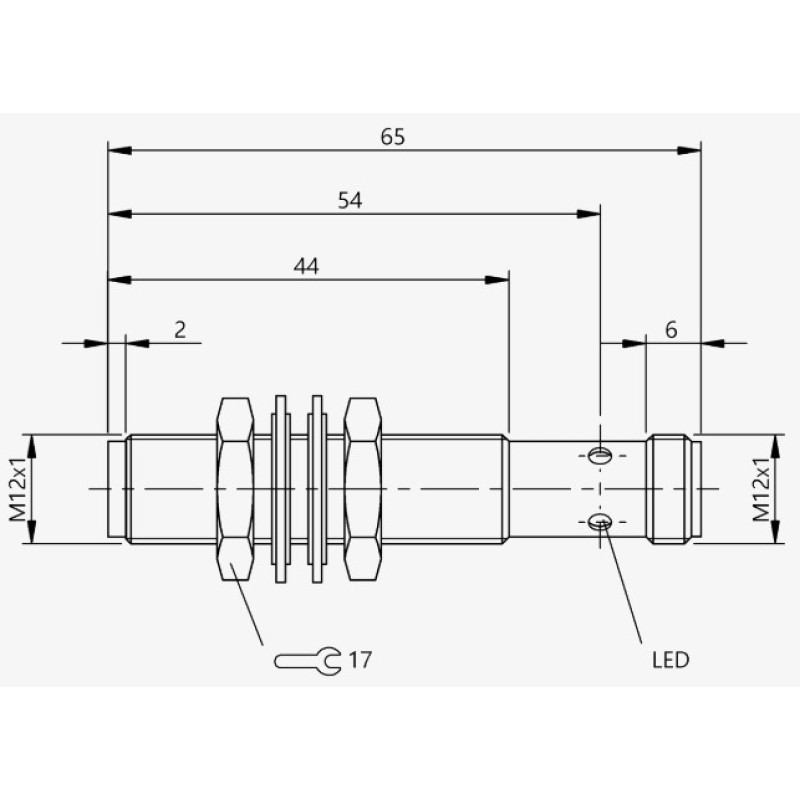

Dimension

Ø 12 x 65 mm

Style Housing

M12x1

Installation

for flush mounting

Range

2 mm

Switching output

PNP normally open (NO)

Switching frequency

100 Hz

Housing material

Stainless steel

Material sensing surface

Stainless steel

Connection

Connector, M12x1-Male, 4-pin

Operating voltage Ub

10...30 VDC

Ambient temperature

-25...70 °C

IP rating

IP67

Approval/Conformity

CE
WEEE

212.40€
